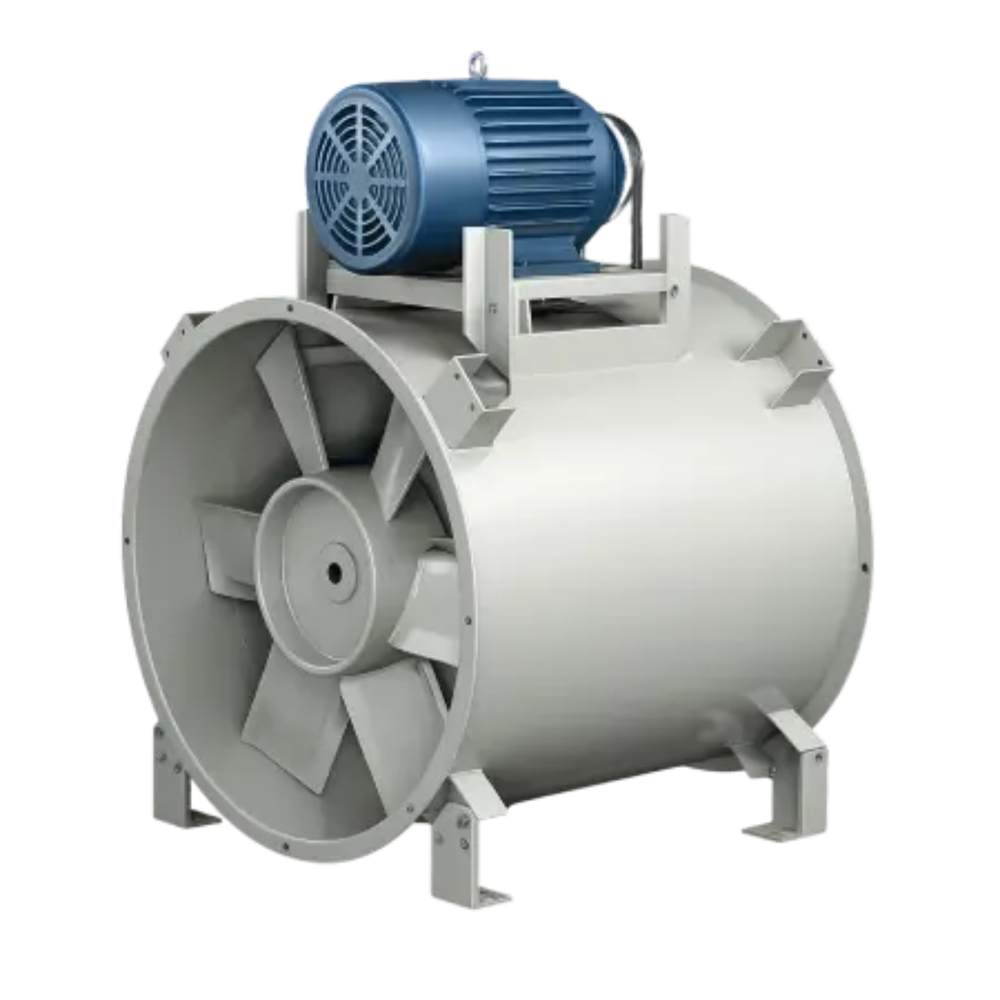

Product Description
Robust Airflow Solutions for Demanding Environments
A Belt Driven Axial Fan is designed for applications requiring high airflow, flexibility in speed control, and reliable performance in tough industrial conditions. With a belt and pulley system, these fans offer adaptability and enhanced control over airflow requirements.
What is a Belt Driven Axial Fan?
A belt driven axial fan uses a motor connected to the fan blades via belts and pulleys. This setup allows the fan speed to be adjusted by changing pulley sizes, making it ideal for applications that require variable airflow.
Air moves parallel to the shaft, delivering large volumes of air efficiently in ventilation and cooling systems.
Key Features
Adjustable Speed Control
Easily modify fan speed by changing pulley ratios to suit different airflow requirements.
Heavy-Duty Performance
Built to withstand continuous operation in industrial environments.
Flexible Installation
Motor can be mounted separately, allowing versatile configurations.
High Airflow Capacity
Designed to move large volumes of air at low to medium pressure.
Durable Construction
Made from robust materials such as steel or aluminum for long service life.
Applications
Belt driven axial fans are widely used in:
- Large industrial plants
- Power plants
- Cement and steel industries
- Warehouses and manufacturing units
- Tunnel ventilation
- HVAC and air cooling systems
- Dust extraction and exhaust systems
Technical Specifications
- Airflow Capacity: Wide range available
- Drive Type: Belt & Pulley System
- Blade Material: Aluminum / Cast Iron / FRP
- Mounting Options: Wall, Duct, or Roof Mounted
- Voltage: Single Phase / Three Phase
- Speed Control: Adjustable via pulley configuration
Advantages of Belt Driven Axial Fans
|
Feature
|
Benefit
|
|
Variable Speed
|
Easy airflow adjustment
|
|
Motor Isolation
|
Reduced exposure to heat and contaminants
|
|
High Load Handling
|
Suitable for heavy-duty operations
|
|
Longer Motor Life
|
Less direct stress on motor
|
Why Choose Our Belt Driven Axial Fans?
- Engineered for high performance and durability
- Customizable designs for specific industries
- Smooth and stable operation
- Easy maintenance and serviceability
Cost-effective solution for large-scale ventilation
Advanced Performance and DurabilityCrafted using premium aluminum blades and housed in a sturdy mild steel body, this axial fan is engineered for prolonged industrial operation. Its belt-driven system efficiently handles demanding air movement tasks. The fan balances high air delivery with optimal power consumption, providing sturdy and reliable ventilation for your workspace.
Flexible Installation and Broad ApplicationOffering versatile mounting options-wall, floor, or duct-this fan adapts seamlessly to various industrial spaces. It is ideal for ventilation, air circulation, and exhaust needs in factories, workshops, and warehouses. The automatic thermal protection system ensures safe use even under rigorous operational conditions.
FAQ's of Belt Driven Axial Fan:
Q: How do I install the belt driven axial fan for optimal airflow?
A: The fan is designed for wall, floor, or duct mounting, allowing you to position it where ventilation is most needed. Follow the installation manual for secure mounting and ensure no obstructions impede the 600 mm blade rotation. Proper placement enhances air distribution and operational safety.
Q: What makes this fan suitable for industrial applications?
A: With an airflow capacity of 7500 CFM, rugged mild steel construction, six aluminum blades, and a speed of 960 RPM, this fan is engineered to withstand demanding environments. Its reliable cooling and exhaust capabilities make it ideal for factories, warehouses, and similar industrial sites.
Q: Where can I use this fan for best results?
A: This axial fan can be effectively used wherever efficient ventilation or air circulation is required, such as manufacturing plants, workshops, paint booths, and storage areas. Its flexible mounting options allow for integration into walls, floors, or ducts.
Q: What safety features are included in the fan design?
A: The fan incorporates automatic thermal protection, which prevents overheating by shutting down the system if excessive temperatures are detected. This feature safeguards the motor, ensuring prolonged operational life and reducing maintenance needs.
Q: When is maintenance recommended for this fan?
A: Routine maintenance, including cleaning the aluminum blades and checking belt tension, is suggested every three to six months under standard usage. Regular inspections help maintain peak performance and extend the fan's service life.
Q: What are the benefits of the belt driven system in this fan?
A: A belt-driven system allows for smoother and quieter operation compared to direct drive models. It also helps in reducing vibration and enables speed adjustments, offering greater control and longevity in demanding applications.
